Tokenizer Service Interface

The tokenization service interface is prompt/tokenizer, using the Tokenize.srv definition. prompt_bridge selects the tokenizer plugin from input.model_family and executes tokenization locally or through the provider implementation.

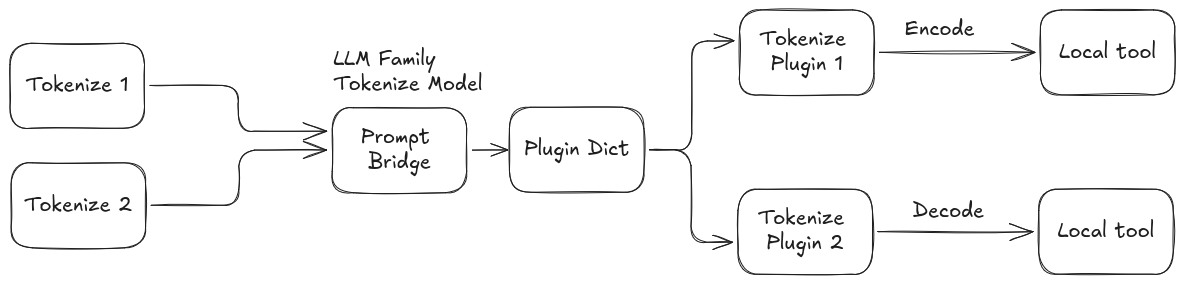

Tokenizer Architecture

Service Definition

prompt_msgs/Token input
---
prompt_msgs/TokenResponse output

Request Fields

Field	Type	Description
input	Token	The tokenization request message.

Token.msg Fields

Field	Type	Description
text	string	String to be tokenized (if encoding).
tokens	int32[]	Tokens to be decoded (if decoding).
encode	bool	True to encode text to tokens, false to decode.
model_family	string	Model family/provider to use (e.g., openai).
options	ModelOption[]	Model-specific options.

Response Fields

Field	Type	Description
output	TokenResponse	The tokenization response.

TokenResponse.msg Fields

Field	Type	Description
tokens	int32[]	List of tokens (if encoding).
text	string	Decoded text (if decoding).
success	bool	True if conversion was successful.
error	string	Error message if failed.

ModelOption.msg Fields

Field	Type	Description
key	string	Option key
value	string	Option value
type	string	Type hint. The message constants currently define str, bool, int, and real.

How to Use the Service

• To encode: set text to your string, encode to true, and leave tokens empty.
• To decode: set tokens to your token list, encode to false, and leave text empty.
• Set model_family to the provider/plugin (e.g., openai, ollama).
• Use options for model-specific parameters (see plugin_parameters.md).
• The current OpenAI tokenizer plugin supports O200K_BASE, CL100K_BASE, R50K_BASE, P50K_BASE, and P50K_EDIT.

Example Request (YAML)

Encoding example:

input:
    text: "Hello world!"
    tokens: []
    encode: true
    model_family: "openai"
    options:
        - key: model
            value: O200K_BASE
            type: str

Decoding example:

input:
    text: ""
    tokens: [15496, 995]
    encode: false
    model_family: "openai"
    options:
        - key: model
            value: O200K_BASE
            type: str

Extending

To add a new Offline Tokenizer provider, implement a plugin inheriting from prompt::TokenizeBaseClass and register it. Add its configuration to your YAML file and list it in tokenizer_family_names and tokenizer_family_plugins.

Notes

• The service can encode text to tokens or decode tokens to text, depending on the encode flag.
• The current bundled tokenizer implementation is prompt::OpenAITokenize, which uses cpp-tiktoken locally rather than a REST endpoint.
• Use the success and error fields to check for errors.
